TECHNICAL DATA SHEET
Material Composition:
Chrysotile asbestos fibre, Mineral fibre, Natural Rubber & Nitrile Butadiene Rubber with 8 mesh G. I. wire reinforced.
General properties and applications :
To seal of water, steam, air and various alkaline chemicals under low stress comditions.
Factors affecting on the gasket
The suitability of a gasket material for an application is dependent upon a multiplicity of factors as shown in the above digram. Max. temperature and pressure values can not define the suitability for application. It is always advisable to consider these factors when selecting a material for a given application .

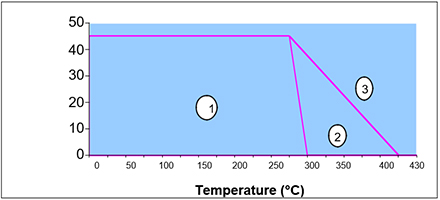

Areas of application
1- This area refer , the gasket material is normally suitable subject to chemical compatibility.
2- This area refer, the gasket material may be suitable but a technical support is recommended.
3- This area refer, do not install the gasket without technical evaluation.
DIMENSIONS OF STANDARD SHEETS :
Standard sheet sizes :1500 X1500 mm,1500 X2250mm, 1500 X4500 mm ,1500 X1000 mm,1000X1000mm 1500 X4000 mm, 1500 X2000 mm, 1300 X3900 mm, 1270 X1270 mm, 2100 X 3000 mm, 1500 X 3000 mm.
FINISH : Grey/Graphite ,(other Colour on Customer requirement).
IS 2712 : 1998
Technical data
The following information applies to material thickness 1.5 mm .
| Test method | Specified Value | Unit | |
| Max. Operating Temperature | 415 | °C | |
| Max. Operating Pressure | 45 | bar | |
| Density | ASTM F 1315 | 1.8 -2.20 | g/cm³ |
| Compressibility | ASTM F 36 A | 6-14 | % |
| Recovery | ASTM F 36 A | ≥ 40.0 | % |
| Tensile Strength | ASTM F 152 | ≥ 8.0 | N/mm² |
| Loss on ignition | ASTM F 495 | ≤ 24 | % |
| Flexibility | ASTM F 147 B | No Cracks | -- |
All information and recommendations given in this brochure are correct to the best of our knowledge. However, in view of the wide varity of possible installation and operating conditions one cannot draw the final conclusion in all application cases regarding the behaviour in a gasket joint. Therefore, information can only serve as a guideline.
VIFOR JOINTINGS PVT. LTD. MATERIAL SAFETY DATA SHEET
COMPRESSED ASBESTOS MATERIAL
1- IDENTIFICATION OF THE MATERIAL AND SUPPLIER
Product Name
Other Generic Names:
Description:
MSDS Number
Supplier
Vifor KGM 5000 Steel ( Reinforced )
Compressed Asbestos Fiber Jointing Sheet
Chrysotile Asbestos fiber, mineral fiber, inorganic Fillers, Rubber bonded
Sheet
SJPL CAF - 05
Vifor Jointings Pvt. Ltd.
Plant Address : M4 & M5, H.H. Shaikha Maryam
Building, 30th Street, Umm Hurair Street, Dubai
2 - HAZARDS IDENTIFICATION
* Asbestos is listed as a confirmed human carcinogen by IARC.
See Section 11: “Toxicological Properties” for potential health effects
3 - COMPOSITION/INFORMATION ON INGREDIENTS
Ingredient | Proportion |
Rubber binder | <15 % |
Fibers | <60 % |
Inert inorganic fillers | <35-45 % |
Wire Mesh | <5 % |
4 - FIRST AID MEASURES
Eye Contact :
Inert dust, rinse with water.
Skin Contact :
Inert dust, wash with soap and water.
Inhalation :
Asbestos is encapsulated in binder. If asbestos dust is created from the product, inhalation may result in long term health effects.
Ingestion :
Inert dust, not a hazard.
Suitable Extinguishing Media Water, carbon dioxide, powder extinguishers, foam extinguishers
Hazards from Combustion Products In case of combustion, the same gases are produced as with burning rubber. The following may be produced in case of fire: Carbon monoxide; carbon dioxide; sulphur oxides; nitrous gases (NOx); irritating/caustic, combustible as well as poisonous carbonisation gases.
Precautions for Firefighters and
Special Protective Equipment Breathing apparatus and eye protection must be worn to protect from dust, fumes and burning rubber
6 - ACCIDENTAL RELEASE MEASURES
Emergency Procedures Fire: See Section 5
Personal: See Section 4
Environmental: No known environmental hazards exist.
Methods and Materials for
Containment and Cleanup Approved vacuum cleaners with high efficiency filters (HEPA)
conforming to AS3544 or equivalent must be used to clean areas.
Additional
In the case of improper use (see Section 8) fine dust may result. Adequate suction and filtering of the exhaust air should be ensured.
7 - HANDLING AND STORAGE
Handling
Care must be taken as the material may have protruding wire that may cause laceration. No special precautions necessary when handling the material in its finished form as the synthetic mineral fibres are encapsulated in a rubber matrix. However, whenever further processing of sheets/gaskets is undertaken, the potential for the release of fibres exists.
Storage
Store in cool dry location. Avoid sunlight and contact with oil and chemicals as this will shorten the shelf life. Under acceptable conditions, no deterioration can be expected for three/four years after which product loses flexibility but does not release fibers.
8 - SPECIAL PROTECTION
When subject to operations that create dust levels higher than 10mg\m3 (Nuisance dust) use dust Collection and /or dust respirator.
9 - PHYSICAL AND CHEMICAL PROPERTIES
Solubility (water) | - | Insoluble |
Specific Gravity/Density | - | 1.8-2.2 g/cc |
Odour | - | None |
Appearance | - | Flat or rolled sheet from 0.75mm upto 6.00mm in Thickness. |
Colour is Grey/Graphite. |
This is stable material under normal use, handling, and storage conditions. Shelf life is measure
in years. In service avoid incompatible media .The importer can provide chemical resistance data upon Written Request.
11 – TOXICOLOGICAL PROPERTIES
Route of Entry :
Exposure :
Chronic Exposure :
Toxic Effects :
Inhalation of asbestos dust has shown to cause cancer. Smokers have
an increased risk of lung cancer when exposed to asbestos. No
adverse effect in skin contact, eye contact or ingestion. Acute
No immediate reaction to overexposure.
Long term overexposure to asbestos dust may cause asbestosis, lung
cancer and mesothelioma of the pleura and peritoneum.
Listed as a confirmed human carcinogen by IARC (Group 1)
12 - ECOLOGICAL INFORMATION
Ecotoxicity Not known. Insoluble in water, precipitates.
Persistence and Degradability Not known. Not biologically degradable (self-classification).
Mobility Not known
13- DISPOSAL PROCEDURES
Dispose of in a sanitary landfill in accordance with federal, state, and local regulations of country.
14 - TRANSPORT INFORMATION
UN Number | None allocated | |
UN Proper Shipping Name | None allocated | |
Class and Subsidiary Risks | Not relevant | |
Packing Group | Not relevant | |
Special Precautions for User Do not transport with Explosives, Oxidising agents, Organic peroxides and foodstuffs. In sheet and cut under normal transport conditions. Not
defined as a Dangerous Good by the Australian Code for the Transport of Dangerous Goods by Road and Rail.
Hazchem Code
None allocated
15 - REGULATORY INFORMATION
Regulations for dangerous materials not applicable.
16 - OTHER INFORMATION
The information presented is based on the present level of knowledge and experience.
All information and recommendations contained in this publication are to the best of our knowledge. Since the conditions of use are beyond our control, users must satisfy themselves that products are suitable for the intended processes and applications. No warranty is given or implied in respect of information and recommendations or that any use of the products will not infringe rights belonging to other parties. In any event or occurrence, our liability is limited to our invoice value of the goods delivered and properties without notice.
